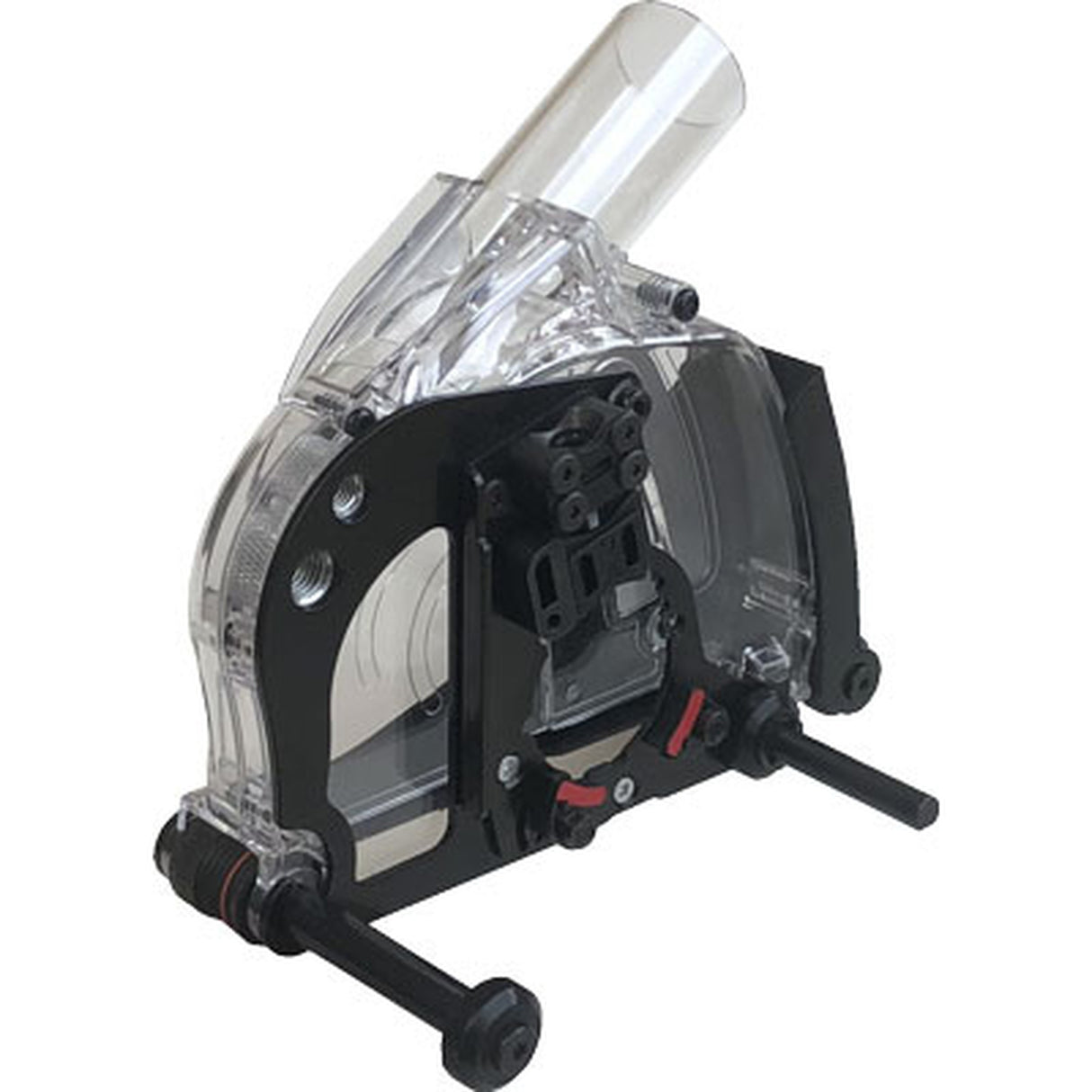

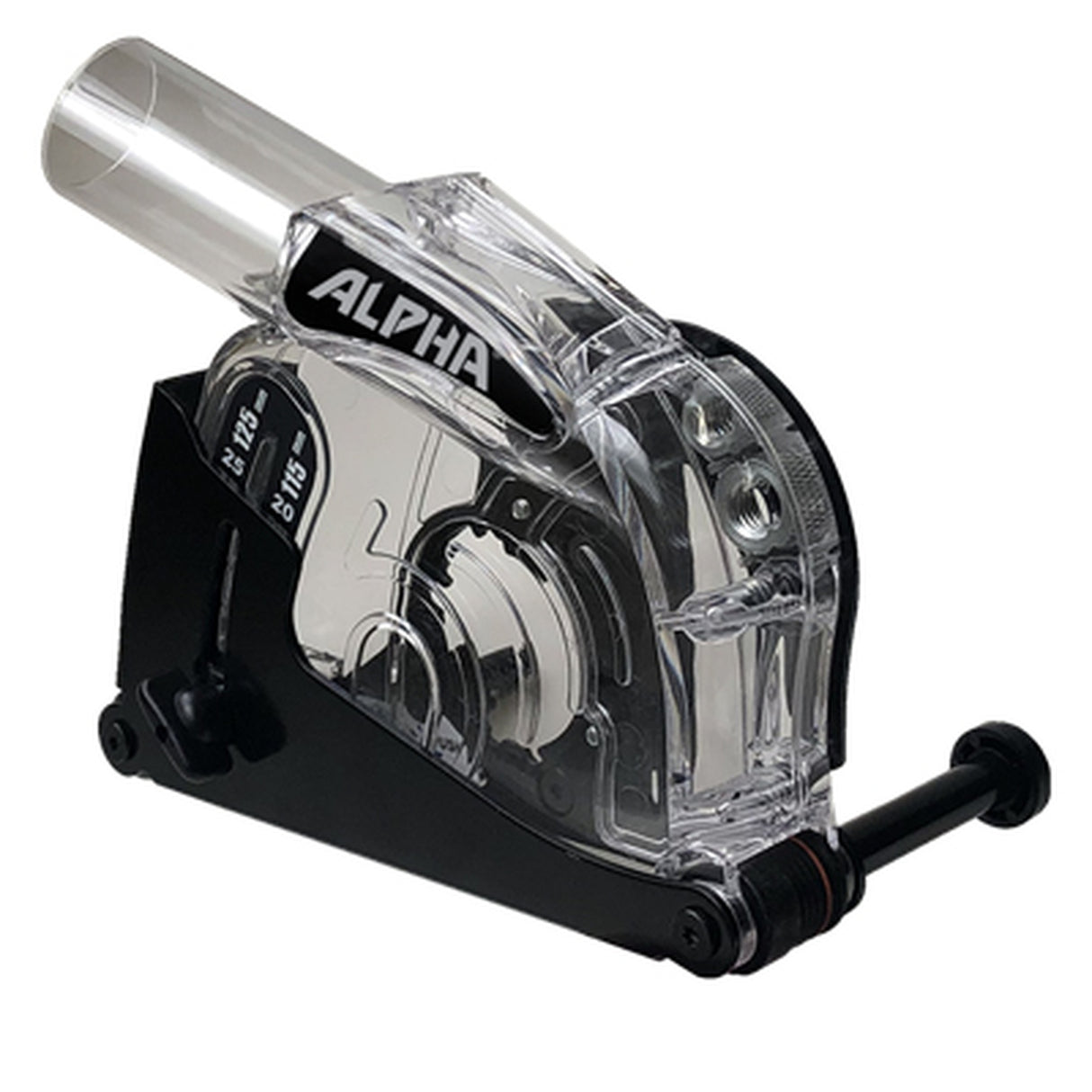

Ecoguard CX Series Universal Dust Cover for Cutting
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description
Ecoguard™ CX-5 Universal Connector Hose
The Ecoguard™ CX-5 Universal Connector Hose links the CX-5 Cutting Dust Cover (and other Alpha dust shrouds) to a HEPA wet/dry vacuum. The flexible hose is offered in two lengths — 18" for bench and short-reach work and 54" for extended-reach jobsite cutting. Both lengths use the same universal cuffs and are made in the USA from heavy-duty kink-resistant material.
Features
- Direct fit to Ecoguard CX-5 and other Alpha cutting dust covers
- Universal cuffs accept standard 1-1/4" / 2-1/4" vacuum hose adapters
- Flexible, kink-resistant construction for jobsite use
- Two lengths to match the work: 18" for short reach, 54" for extended reach
- Made in the USA
| Part No. | Length | Type | Country of Origin | UPC |
|---|---|---|---|---|
| 500026 | 18" | Flexible Connector Hose | USA | 749173660979 |
| 500073 | 54" | Flexible Connector Hose | USA | 749173661549 |
- Choose the 18" hose (P/N 500026) for tight bench-top cutting or the 54" hose (P/N 500073) when you need extended reach on the jobsite.
- Attach one end of the connector hose to the dust port on the Ecoguard CX-5 cover.
- Attach the other end to your HEPA wet/dry vacuum, using the Air/Exhaust Hose Adapter (HEP110021) if the cuffs do not match.
- Turn on the vacuum before starting the cut so dust is captured from the first second.
- Inspect the hose for cracks or worn cuffs before each shift — a clean seal is required for >90% dust capture.
18" — Flexible Connector Hose — 500026
| Part No. | 500026 |
| UPC | 749173660979 |
| Size | 18" |
| Type | Flexible Connector Hose |
| Recommended For | Connects Ecoguard CX-5 cutting dust cover to a HEPA vacuum |
| Packaged Weight | 0.35 lbs |
| Package Dimensions | 21.5" x 4.5" x 3" |
| Commodity Code | 8466.91.0000 |
| Country of Origin | USA |
54" — Flexible Connector Hose — 500073
| Part No. | 500073 |
| UPC | 749173661549 |
| Size | 54" |
| Type | Flexible Connector Hose |
| Recommended For | Connects Ecoguard CX-5 cutting dust cover to a HEPA vacuum |
| Packaged Weight | 1.00 lbs |
| Package Dimensions | 17" x 14" x 4" |
| Commodity Code | 8466.91.0000 |
| Country of Origin | USA |
| Property | Detail |
|---|---|
| Application | Dust extraction connector hose for Ecoguard CX-5 cutting cover |
| Cuff Type | Universal — compatible with standard vacuum adapters |
| Material | Heavy-duty kink-resistant polymer |
| Recommended Vacuum | HEPA wet/dry vacuum |
| Country of Origin | USA |
Which Ecoguard cover does this hose fit?
The CX-5 cutting dust cover. The universal cuffs also adapt to other Alpha dust shrouds and to most HEPA wet/dry vacuums.
What is the difference between the 18" and the 54" hose?
Only the length. The 18" hose (500026) is sized for bench-top cutting; the 54" hose (500073) gives you extended reach when working away from the vacuum.
Can I connect it directly to any shop vacuum?
In most cases yes — the cuffs match standard 1-1/4" and 2-1/4" vacuum adapters. Use the Air/Exhaust Hose Adapter (HEP110021) if your vacuum hose does not seat.
What flow rate is recommended?
A HEPA wet/dry vacuum that delivers strong continuous suction is recommended to achieve the system's >90% dust-capture rating.
Universal Cutting Dust Cover for Small Grinders
⚠ WARNING: This product can expose you to chemicals including Carbon Black, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Always wear appropriate PPE.
