Alpha Ultracut ABM Blade
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description
Alpha® Ultracut ABM Series — Vacuum-Brazed Diamond Cut-Off Blade for Pneumatic Tools

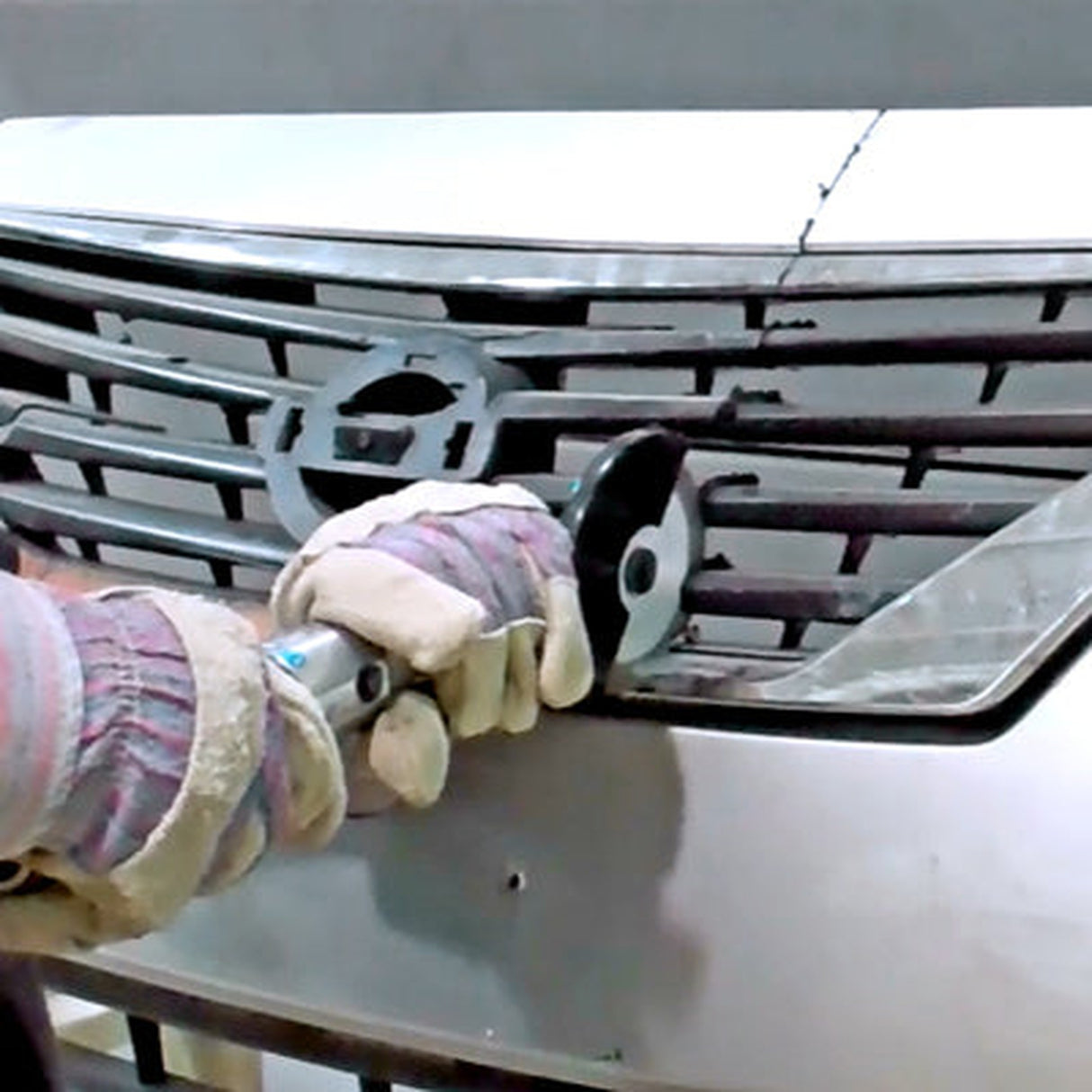

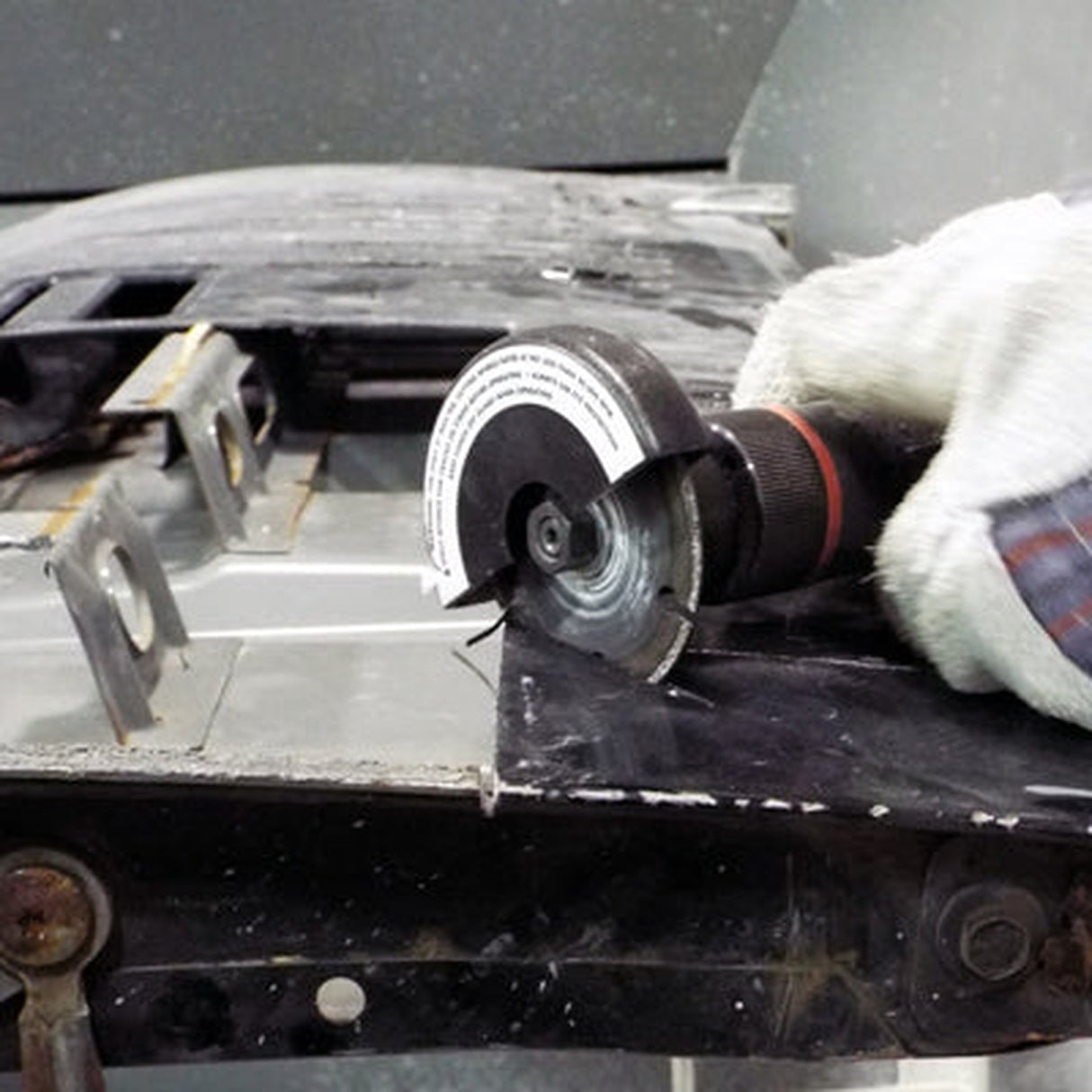

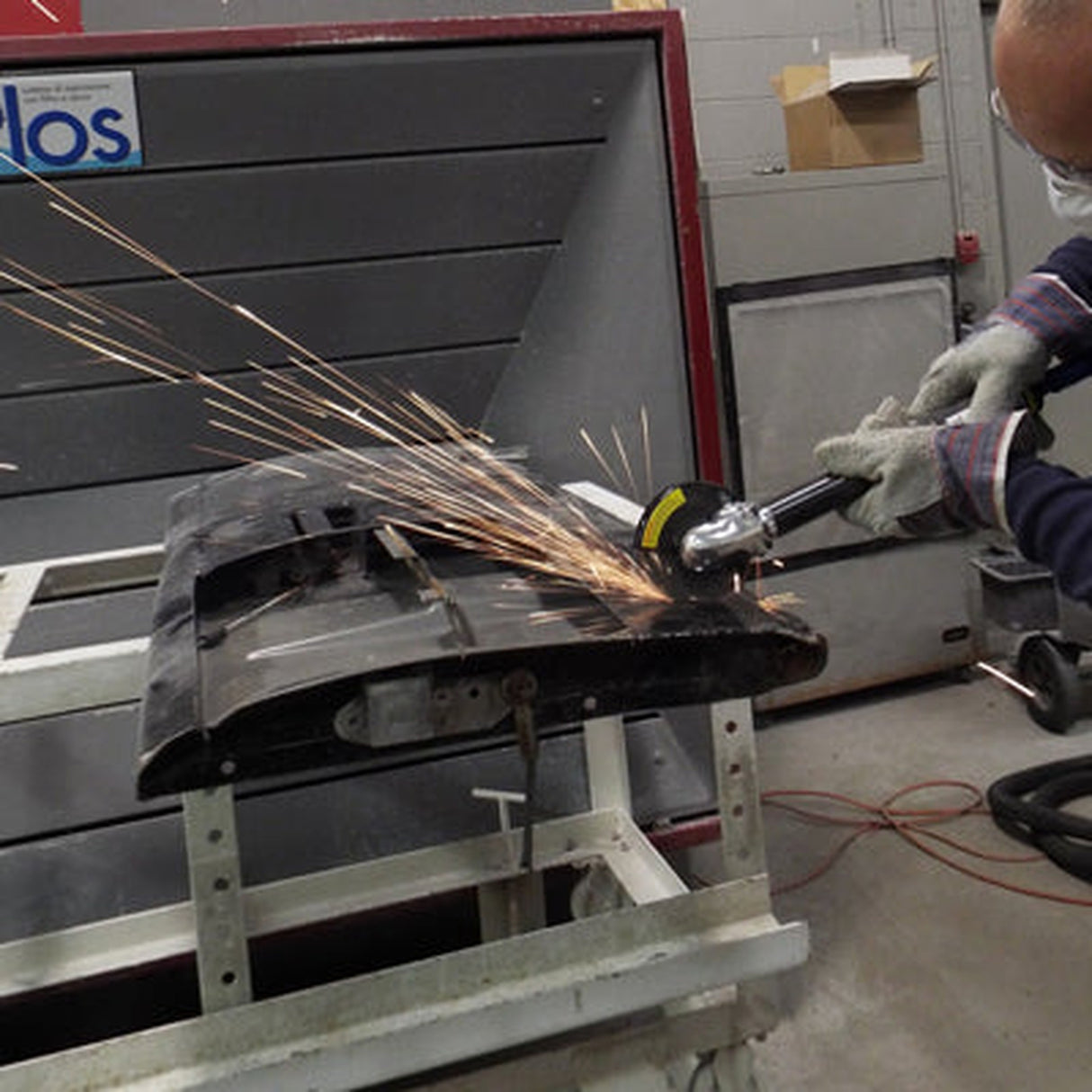

The Alpha® Ultracut ABM Series is a vacuum-brazed diamond cut-off blade engineered for pneumatic cut-off tools widely used in automotive body shops and general industrial manufacturing. Unlike standard abrasive cut-off wheels, the Ultracut ABM keeps a constant diameter throughout its service life, so you maintain full cutting depth from the first cut to the last. Its bi-directional rotation lets you run reversible cut-off tools and direct sparks and debris away from the operator. Available in 3" (ABM0338) and 4" (ABM0438) sizes with a 3/8" (10mm) arbor.
Features
- Vacuum-brazed diamond cut-off wheel — maintains diameter and cutting depth throughout its life

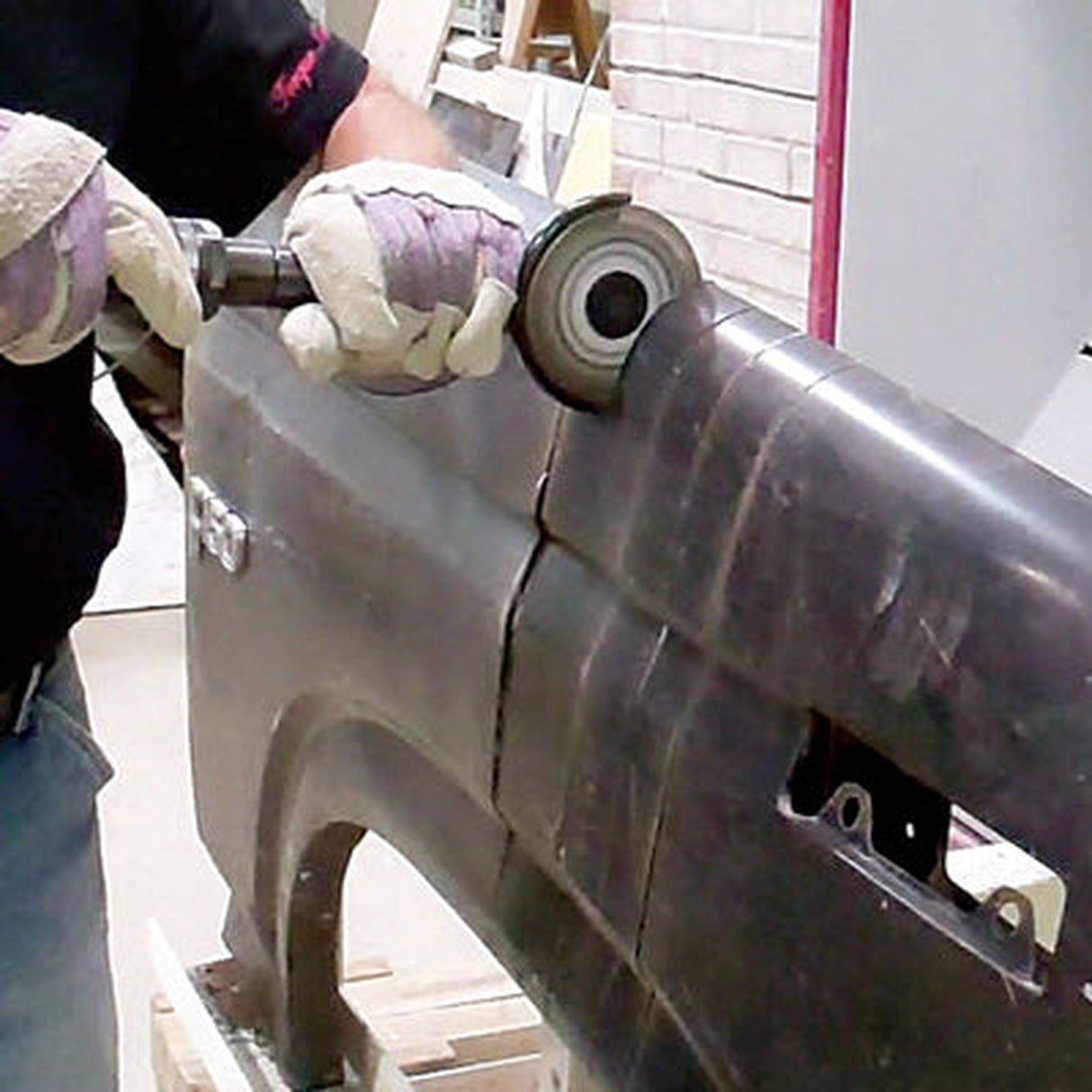

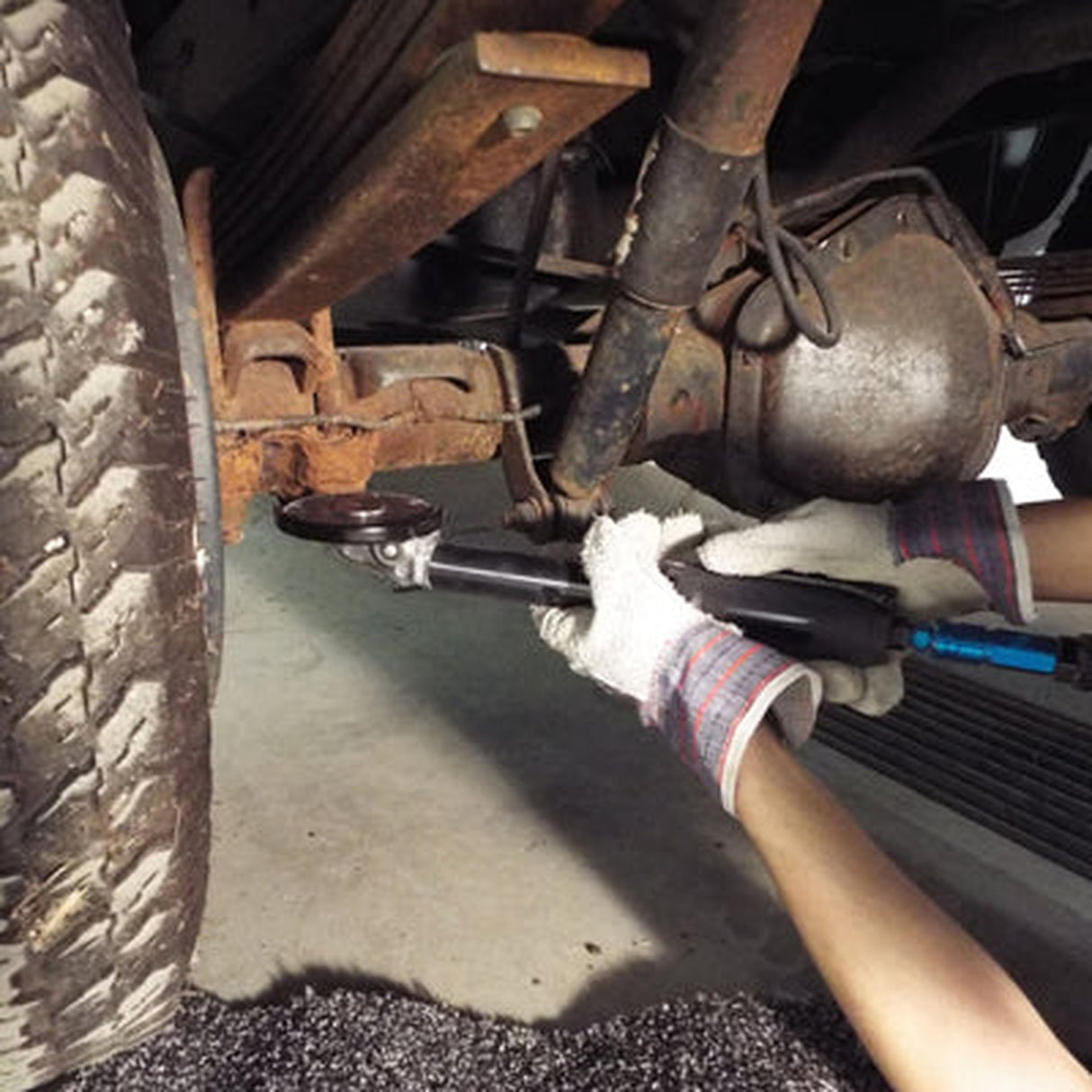

- Designed for 3/8" (10mm) arbor pneumatic cut-off tools used in automotive and industrial shops
- Bi-directional rotation — safe to run on reversible cut-off tools

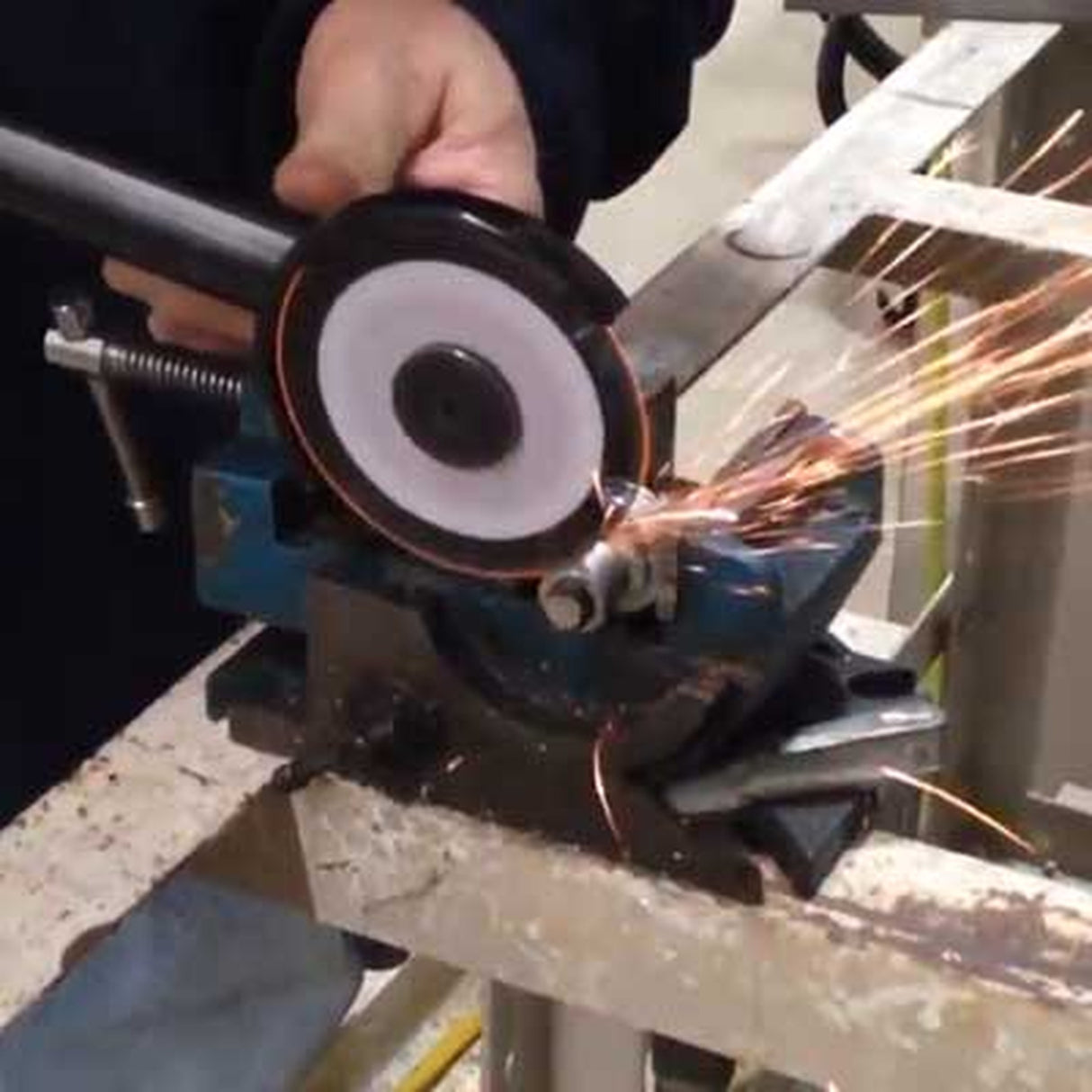

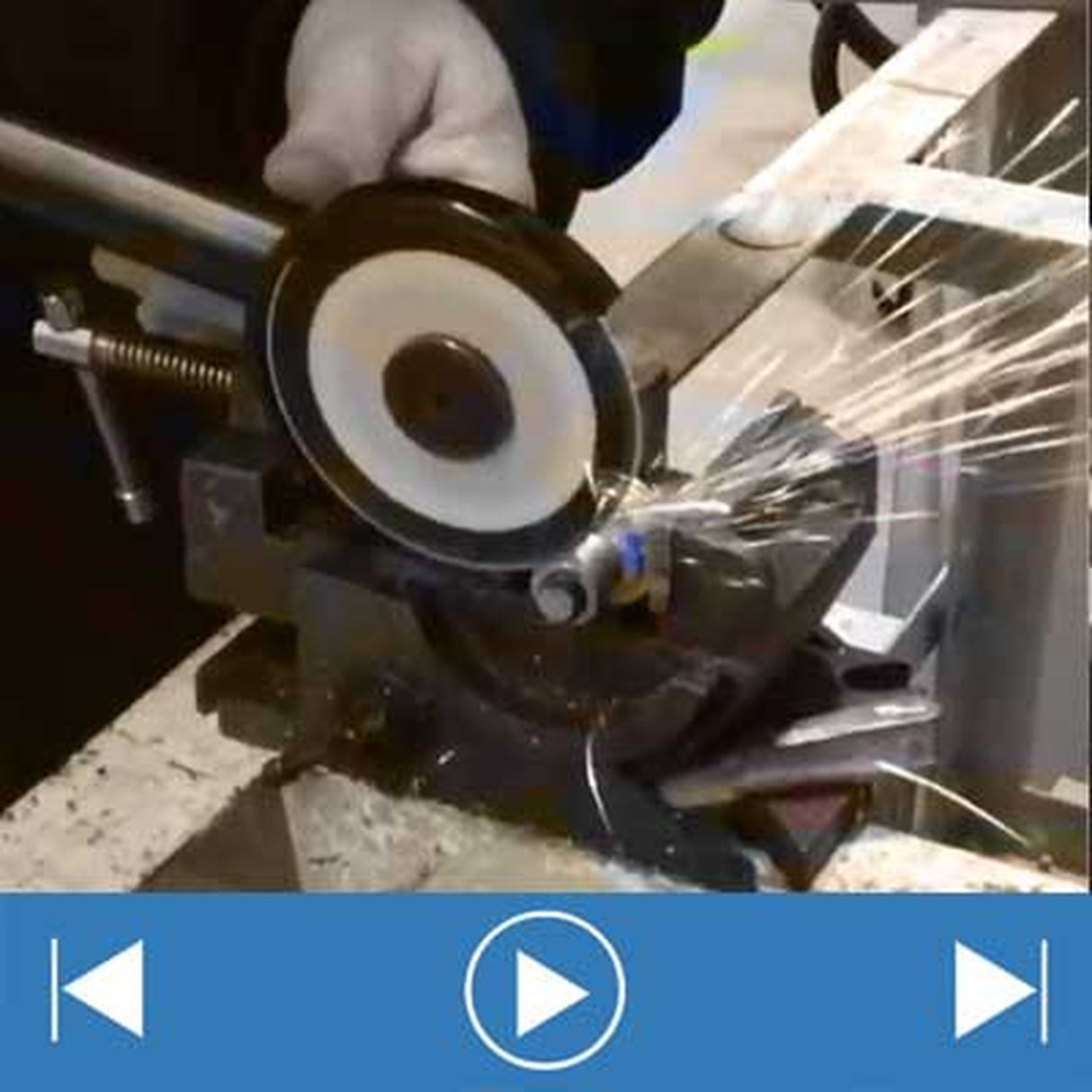

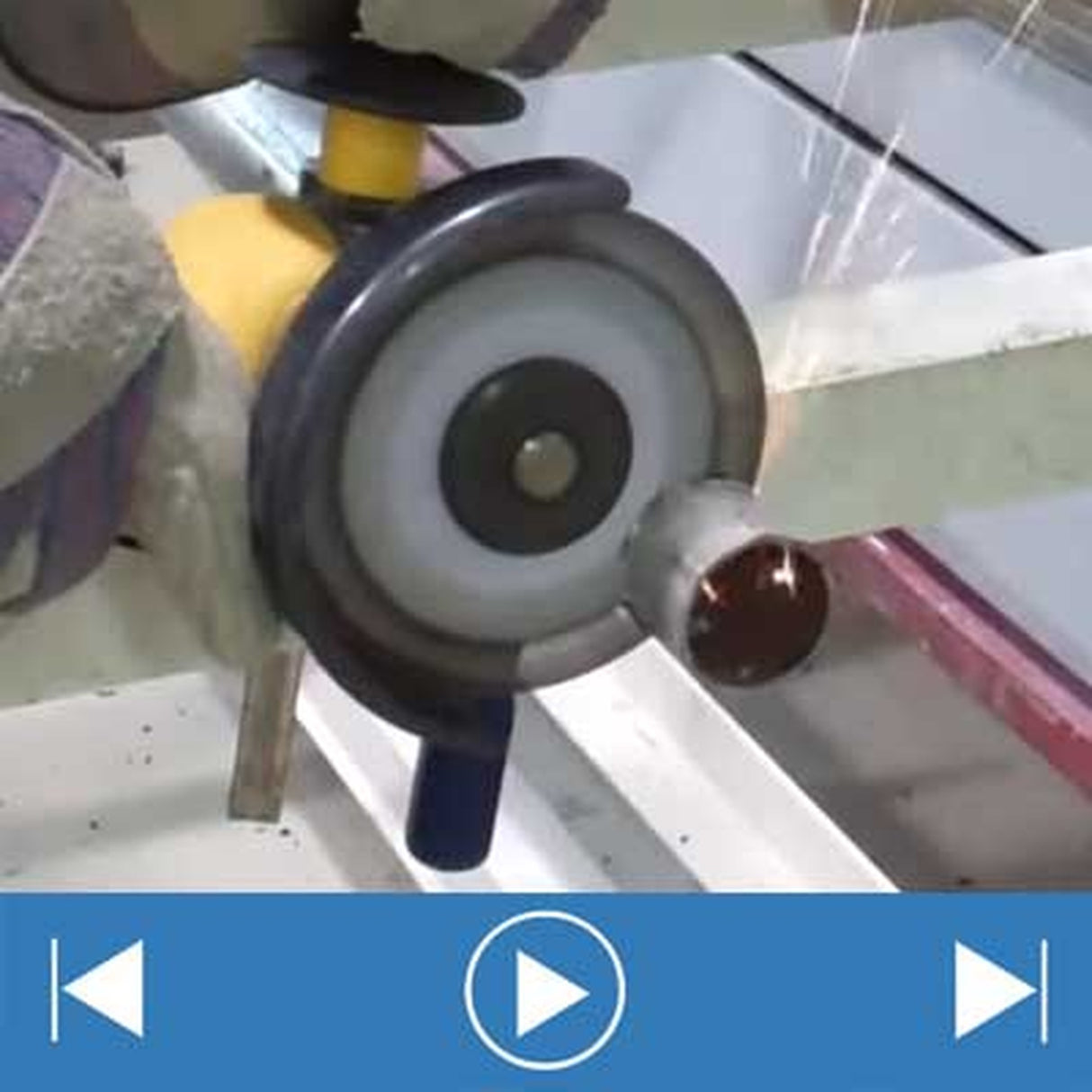

- Cuts angle iron, pipe, electrical conduit, re-bar, metal stud, structural metal, sheet metal, grid and stainless steel
- Also handles wood, plastics, composite materials, masonry and concrete
- Vendor states up to 50–60x the life of a standard abrasive cut-off wheel (conservatively 30–40x)
- Available in 3" (ABM0338) and 4" (ABM0438) sizes
| Part No. | Size | Thickness | Max RPM | Arbor | UPC |
|---|---|---|---|---|---|
| ABM0338 | 3" | 1.5mm | 20,000 | 3/8" (10mm) | 749173610011 |
| ABM0438 | 4" | 1.5mm | 18,000 | 3/8" (10mm) | 749173610028 |
- Mount the blade on a pneumatic cut-off tool with a 3/8" (10mm) arbor; never use on an angle grinder.
- Verify your tool's no-load RPM is at or below the blade's maximum rated RPM (20,000 for 3", 18,000 for 4").
- Always wear ANSI-rated safety glasses, gloves and hearing protection.
- Allow the blade to reach full speed before contacting the workpiece.
- Use light, consistent feed pressure — let the diamond grit do the cutting.
- For dust suppression and longer blade life, apply water if your tool and workpiece allow.
- On reversible pneumatic tools, you may reverse the direction of rotation to extend useful life by exposing fresh diamond.
- Inspect the blade before every use; replace immediately if the steel core is bent, cracked or out of round.

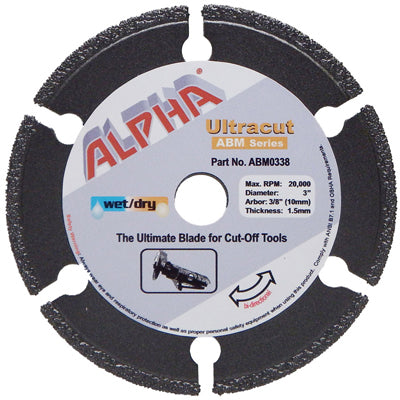

3" — 3/8" (10mm) — Vacuum-brazed diamond — 1.5mm thickness — ABM0338
| Part No. | ABM0338 |
| UPC | 749173610011 |
| Size | 3" |
| Type | Vacuum-brazed diamond — 1.5mm thickness |
| Attachment | 3/8" (10mm) |
| Max RPM | 20,000 |
| Packaged Weight | 0.10 lbs |
| Package Dimensions | 3.5in x 3.5in x 0.25in |
| Commodity Code | 8202.91.6000 |
| Country of Origin | Korea |

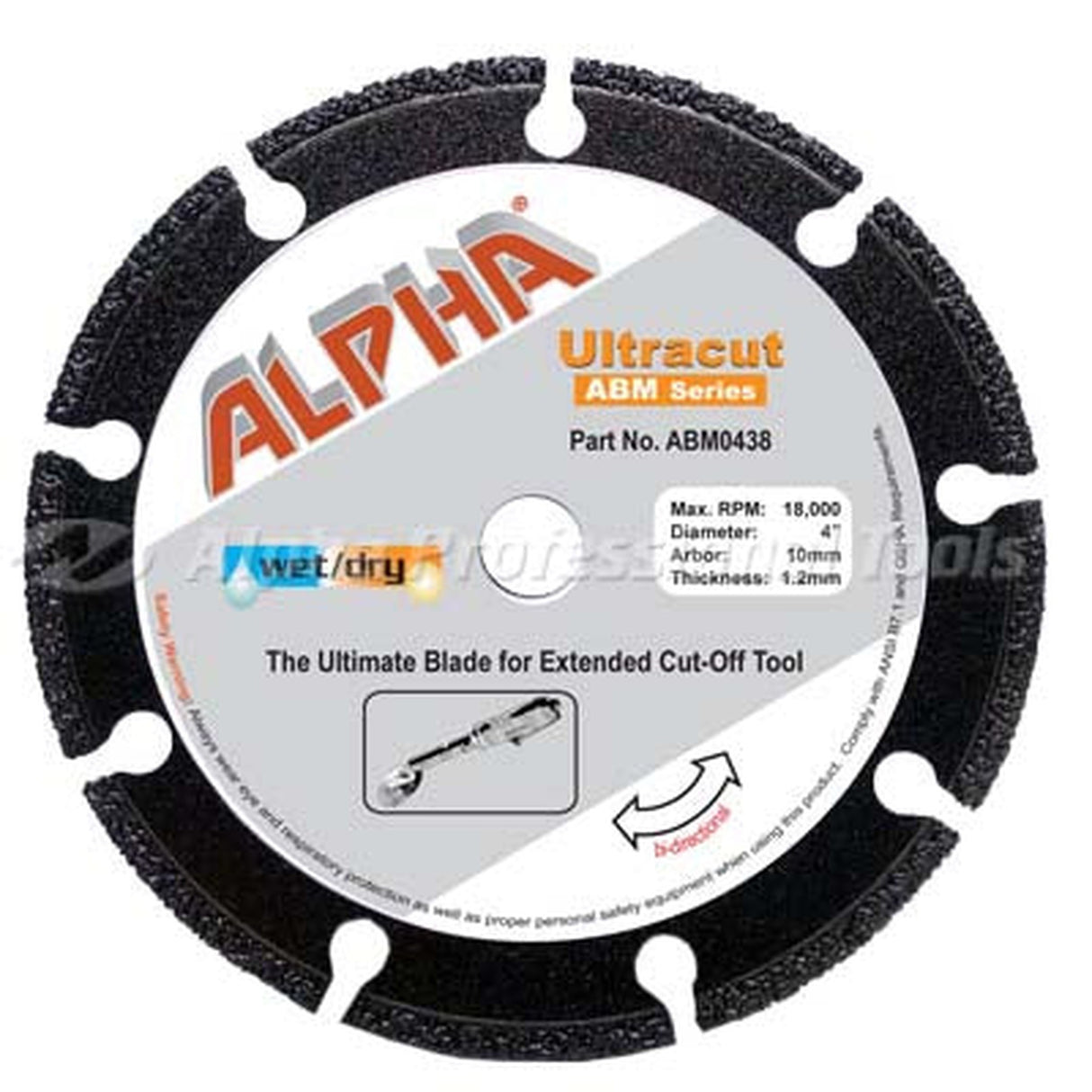

4" — 3/8" (10mm) — Vacuum-brazed diamond — 1.5mm thickness — ABM0438
| Part No. | ABM0438 |
| UPC | 749173610028 |
| Size | 4" |
| Type | Vacuum-brazed diamond — 1.5mm thickness |
| Attachment | 3/8" (10mm) |
| Max RPM | 18,000 |
| Packaged Weight | 0.15 lbs |
| Package Dimensions | 4.5in x 4.5in x 0.5in |
| Commodity Code | 8202.91.6000 |
| Country of Origin | Korea |
| Property | Detail |
|---|---|
| Blade Type | Vacuum-brazed diamond cut-off wheel |
| Core | Steel |
| Thickness | 1.5mm |
| Arbor | 3/8" (10mm) |
| Rotation | Bi-directional |
| Tool Compatibility | Pneumatic cut-off tools (3/8" / 10mm arbor) |
| Materials Cut | Angle iron, pipe, conduit, re-bar, sheet metal, stainless steel, wood, plastics, composites, masonry, concrete |
| Commodity Code | 8202.91.6000 |
| Country of Origin | Korea |
How long does the Ultracut ABM last compared to a standard abrasive cut-off wheel?
Alpha publishes that the Ultracut ABM may last up to 50 to 60 times longer than a standard abrasive cut-off wheel, with a conservative estimate of 30 to 40 times longer.
Can I use water with the Ultracut ABM?
Yes. Running with water reduces dust and improves both performance and blade life when the tool and application allow it.
Can I cut glass with the Ultracut ABM?
For demolition-grade glass cutting, yes. For precision glass cutting, Alpha recommends the Vetro blade instead.
Can I mount the ABM on an angle grinder?
No. Angle grinders use a 20mm or 7/8" arbor; the ABM has a 3/8" (10mm) arbor for pneumatic cut-off tools only.
Does bi-directional rotation double the blade's life?
No. Flipping the rotation exposes fresh diamond and extends usable life, but it does not strictly double the blade's total durability.
Can the Ultracut ABM be used for flush cutting?
No. For flush cutting applications, Alpha offers the Ultracut APR Series with the Quad Drive Adapter.
Alpha Ultracut Series — Overview
Bolt Cutting Made Easy with Alpha Ultracut
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
