Alpha ESC-150/250 Electric Wet/Dry Stone Cutter (6")
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Alpha ESC-150/250 Electric Wet/Dry Stone Cutter (6")
Description
Description

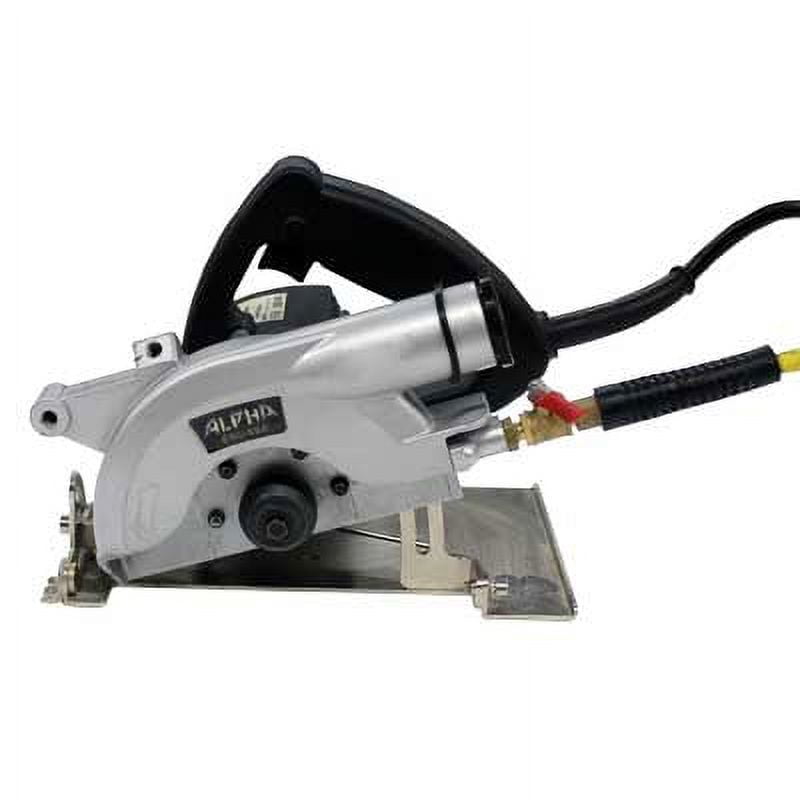

Alpha® ESC-150 / ESC-250 6" Electric Wet/Dry Stone Cutter
The Alpha® ESC-150 (110V) and ESC-250 (220V) are 6" Electric Wet/Dry Stone Cutters built around a powerful 1200W motor that cuts 1-1/4" (3 cm) stone slabs in a single pass and miter cuts the same thickness with minimal setup. Designed for granite, quartz surfaces, marble, limestone, concrete and sintered/porcelain slabs, the ESC-150/250 ships with a kink-free water hose for wet cutting and a built-in dust gate that connects to a HEPA vacuum for dustless dry trimming on the jobsite — the same tool used in Alpha's ESC Miter Cutting Kit and Countertop Trim Kit.
Features
- Powerful 1200 W motor cuts up to 1-1/4" (3 cm) slabs in one pass
- Miter cuts 1-1/4" (3 cm) material without extensive setup
- Cuts granite, quartz surfaces, marble, limestone, concrete and sintered/porcelain slabs
- Kink-free water hose for smooth maneuverability and reduced operator fatigue
- Built-in dust gate enables dustless cutting when connected to a HEPA vacuum
- Excels at sink-hole cutting and groove cutting / rodding
- Two side-handle positions for operator comfort and cut stability
- Compatible with the ASC-6CSM 6" Carriage Assembly and Alpha Guide Rail System
- One-year tool warranty (see manual for details)
| Part No. | Power | Disc Size | Voltage | UPC |
|---|---|---|---|---|
| ESC-150 | 1200W | 6" (150mm) | 110V | 749173621413 |
| ESC-250 | 1200W | 6" (150mm) | 220V | 749173621468 |
- Place the slab on a stable, level work surface; for dry cuts, set a stone or Styrofoam substrate under the blade path to redirect dust upward toward the vacuum.
- For wet cutting, connect the kink-free water hose to a standard garden hose via the quick coupler and confirm steady flow at the manifold before powering up.
- For dry cutting, attach a HEPA vacuum (per OSHA Table 1) to the built-in dust gate.
- Mount the side handle in whichever of the two positions is most comfortable for the cut.
- Plug into a grounded outlet; reset the in-line GFCI before each session.
- Set blade depth (max 2" / 50.88 mm); for straight cuts, ride a TT ruler guide, Alpha® Spike Ruler, or mount the cutter on the ASC-6CSM Carriage and Guide Rail.
- Advance the cutter steadily — let the blade do the work; do not force it sideways.
- After cutting, flush the manifold, wipe the base plate dry, and inspect the carbon brushes and felt strips.
6" Electric Wet/Dry Stone Cutter (110V) — ESC-150
| Part No. | ESC-150 |
| UPC | 749173621413 |
| Type | 6" Electric Wet/Dry Stone Cutter (110V) |
| Packaged Weight | 13.65 lbs |
| Package Dimensions | 14" x 10.5" x 8" |
| Commodity Code | 8467.22.0020 |
| Country of Origin | China |
6" Electric Wet/Dry Stone Cutter (220V) — ESC-250
| Part No. | ESC-250 |
| UPC | 749173621468 |
| Type | 6" Electric Wet/Dry Stone Cutter (220V) |
| Packaged Weight | 13.65 lbs |
| Package Dimensions | 14" x 10.5" x 8" |
| Commodity Code | 8467.22.0020 |
| Country of Origin | China |
| Property | Detail |
|---|---|
| Power | 1200 W |
| No-Load Speed | 10,000 RPM |
| Disc Diameter | 6" (150 mm) |
| Arbor | 7/8" (22.23 mm) |
| Max Cutting Depth | 2" (50.88 mm) |
| Tool Weight | 11.30 lbs (5.12 kg) |
| Cord Length | 15 ft (4.5 m), Single Phase |
| GFCI | Built-in (in-line) |
| Country of Origin | China |
| Warranty | One year (see manual) |
What vacuum type is required for dry cutting with the ESC-150/250?
A HEPA vacuum that meets OSHA Table 1 requirements is required for compliant dry cutting.
What is the warranty period?
One-year tool warranty. See the manual for full details.
How do I get the parts list and schematic?
Visit alpha-tools.com or call 800-648-7229.
Is the ASC-5CSM Carriage Assembly compatible with the ESC-150/250?
No. The ASC-5CSM is sized for the 5" ESC-125. The ESC-150/250 require the larger ASC-6CSM 6" Carriage Assembly.
Why does the ESC-150/250 offer two side-handle positions?
Alpha® provides two side-handle locations so the operator can choose the position that delivers the best comfort and cut stability for each application.
How do I prevent dust escaping during dry cutting?
Place a stone slab or Styrofoam substrate under the blade so dust is redirected upward toward the dust gate and HEPA vacuum.
How can I make straight cuts without the TT Ruler Guide?

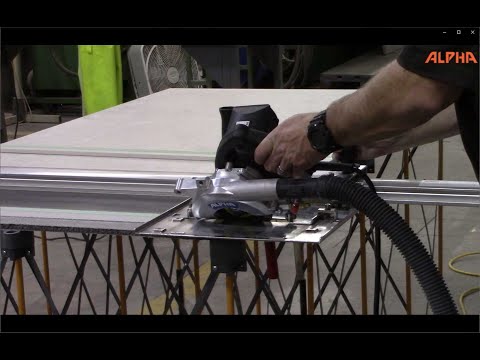

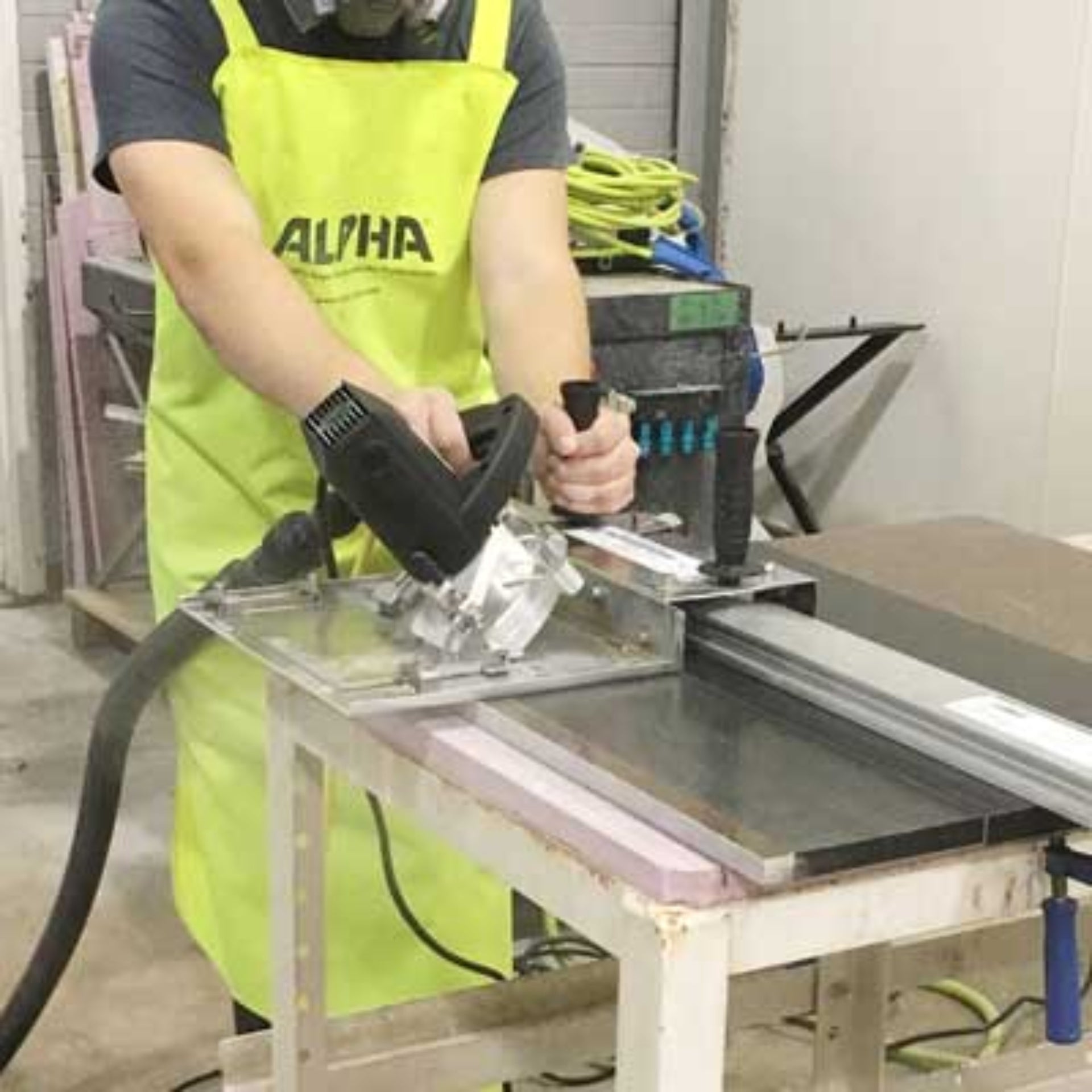

Use the Alpha® Guide Rail and ASC-6CSM Carriage System for long, repeatable cuts, or the Alpha® Spike Ruler for cuts under 3 feet.
No product-specific videos are currently available from the manufacturer or DST.
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
