Alpha Ecoguard CD Dust Collection Cover for Core Drilling
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description

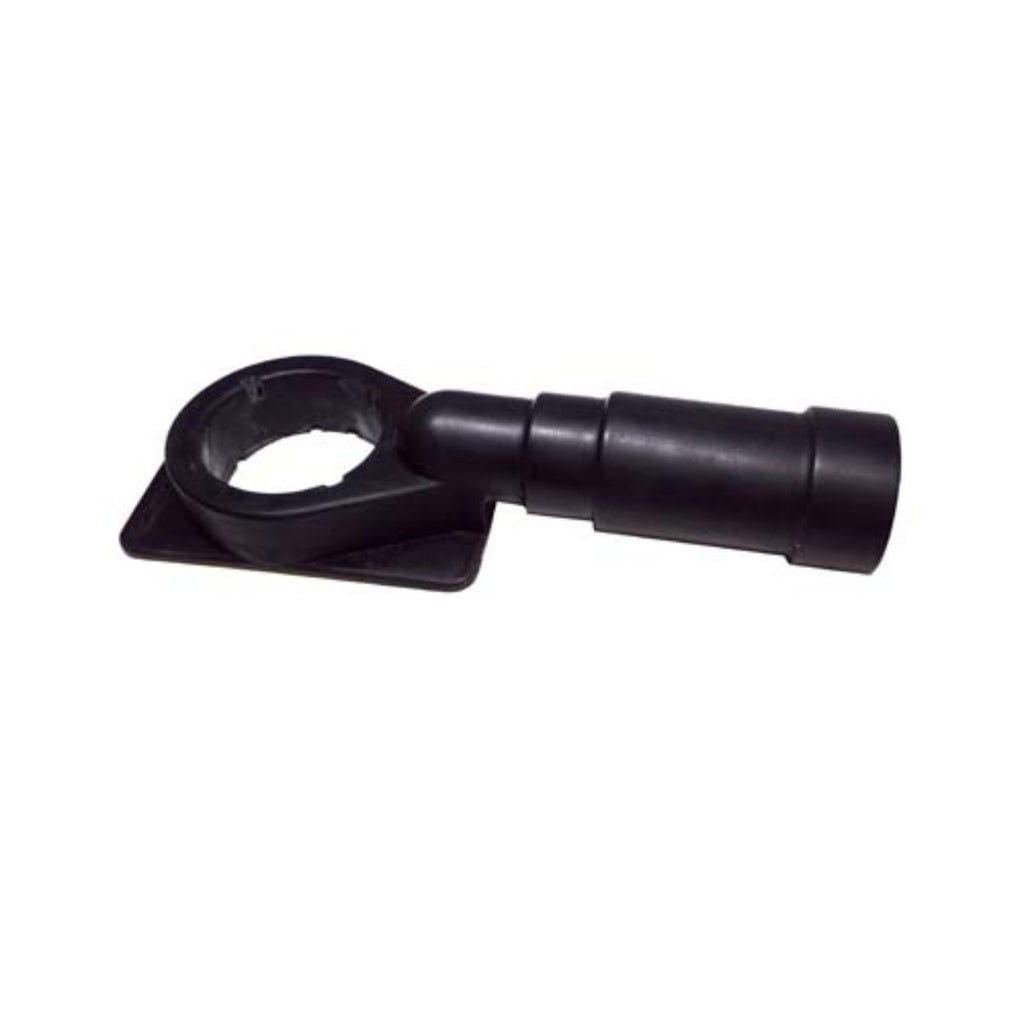

Alpha® Ecoguard CD — Wet/Dry Dust Collection Cover for Core Drilling
The Alpha® Ecoguard Type CD is a wet/dry dust collection shroud built for drilling and core drilling applications. It contains dust and water when drilling with up to a 2-1/2" diameter core bit and secures to horizontal or vertical surfaces using vacuum suction during use. The clear cover prevents splashing in wet applications and fits most standard vacuum dust hoses — a simple, cost-effective dust-removal solution that keeps slurry off the slab and the operator.
Features
- Wet/dry cover for drilling and core drilling applications
- Contains dust and water with core bits up to 2-1/2" diameter

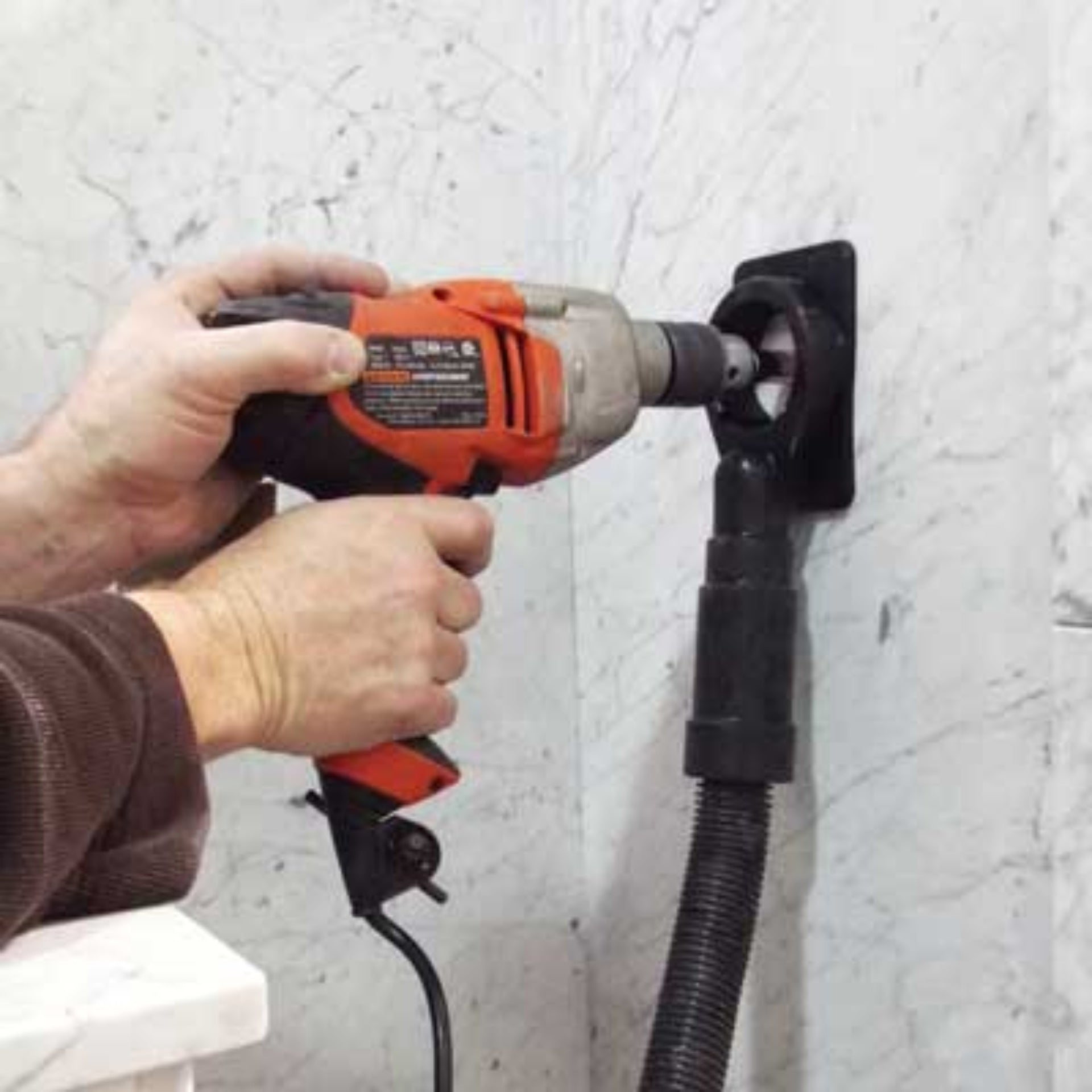

- Holds to horizontal and vertical surfaces via vacuum suction
- Prevents splashing when used with water
- Fits most popular vacuum dust hoses
- Clear cover for visibility at the cut
- Cost-effective dust removal — no spare parts needed
- Works on concrete, stone, masonry, wood, drywall and composites
| Part No. | Recommended For | Max Core Bit | Description | UPC |
|---|---|---|---|---|
| ECOGRDCD | Core Drilling | 2-1/2" | Dust Collection Cover CD | 749173661464 |

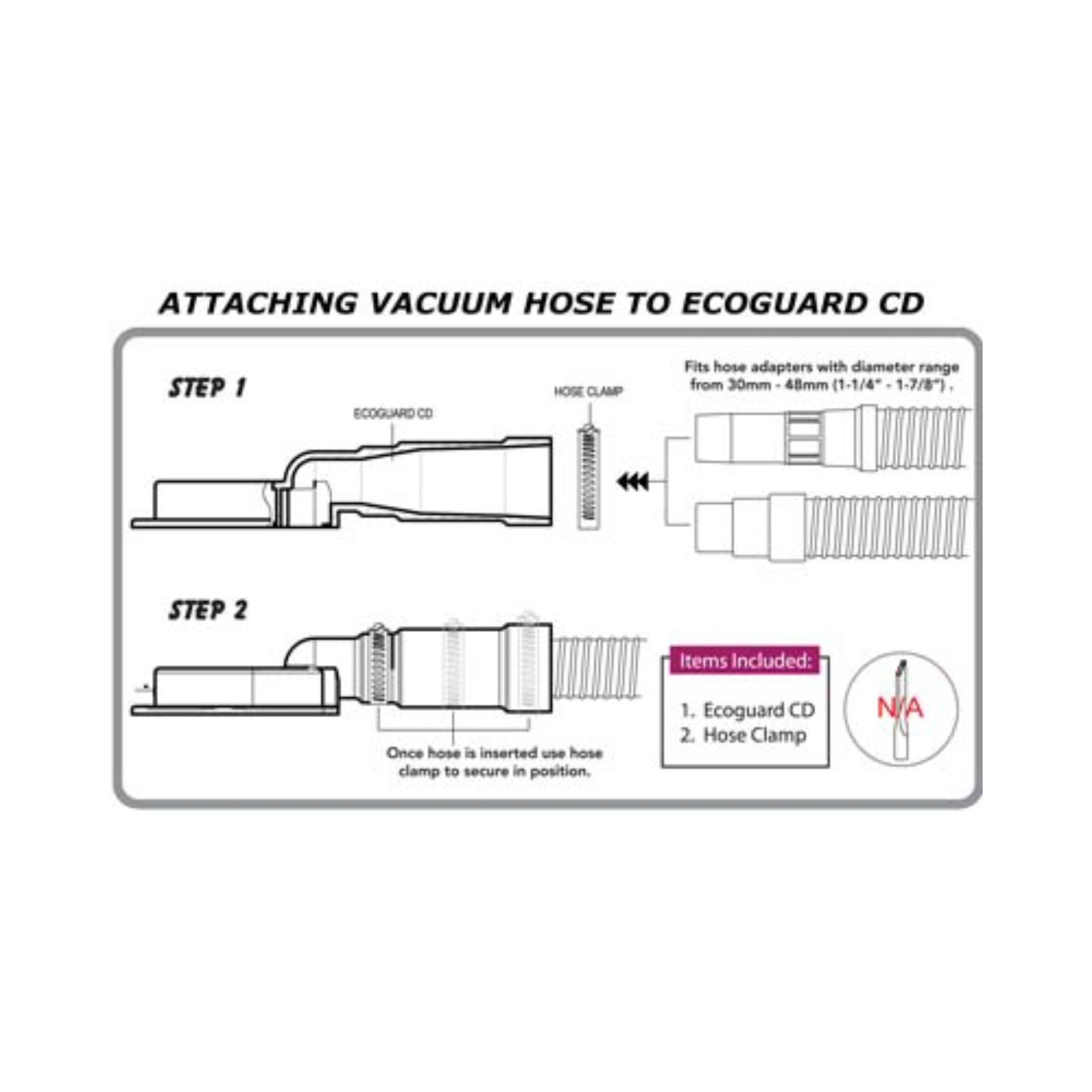

- Connect the Ecoguard CD to a wet/dry vacuum hose — the suction also holds the cover to the work surface.
- Press the rubber lip flat against the drilling surface (horizontal or vertical) until vacuum draw seals it in place.
- Pass the core bit through the center port and align with your hole location.
- For wet drilling, start the water feed at the bit — the cover contains splash while the vacuum carries off slurry.
- For dry drilling, run the vacuum continuously to capture concrete or masonry dust.
- Do not use the Ecoguard CD as a stationary water reservoir — the rim holes are vacuum ports, not seals.
- After use, disconnect the vacuum, rinse the cover, and let it air-dry before storage.
2-1/2" max core bit — Dust Collection Cover CD — ECOGRDCD
| Part No. | ECOGRDCD |
| UPC | 749173661464 |
| Size | 2-1/2" max core bit |
| Type | Dust Collection Cover CD |
| Recommended For | Core drilling dust & water containment up to 2-1/2" bit |
| Packaged Weight | 0.75 lbs |
| Package Dimensions | 14" x 5" x 2.5" |
| Commodity Code | 8466.91.0000 |
| Country of Origin | China |
| Property | Detail |
|---|---|
| Application | Wet/dry core drilling — dust & water containment |
| Max Core Bit Diameter | 2-1/2" |
| Mounting | Vacuum-assisted to horizontal & vertical surfaces |
| Hose Compatibility | Fits most standard wet/dry vacuum dust hoses |
| Compatible Materials | Concrete, stone, masonry, wood, drywall, composites |
| Steel Use | Not recommended — hot metal debris may damage the cover |
| Country of Origin | China |
What is the largest core bit diameter the Ecoguard CD will accept?
Up to 2-1/2" diameter core bits.
Can I use the Ecoguard CD as a water reservoir for wet drilling?
No. The bottom edge has multiple holes for vacuum suction, so it cannot hold standing water. Use it with a running wet/dry vacuum and a water feed at the bit.
Can it double as a drilling guide?
No. The side protection segment will grind against the surface and damage the rubber if used as a guide.
What materials can I drill with the Ecoguard CD attached?
Concrete, stone and masonry primarily — plus wood, drywall, composites and similar materials.
Is it safe for steel drilling?
It may work for occasional steel use, but hot metal debris can damage the cover. Not recommended for routine metal applications.
Does the Ecoguard CD include a vacuum hose?
No. It connects to your existing wet/dry vacuum hose and fits most popular dust hoses.
Alpha® Ecoguard CD — Dust Collection for Core Drilling
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
