Description
Description

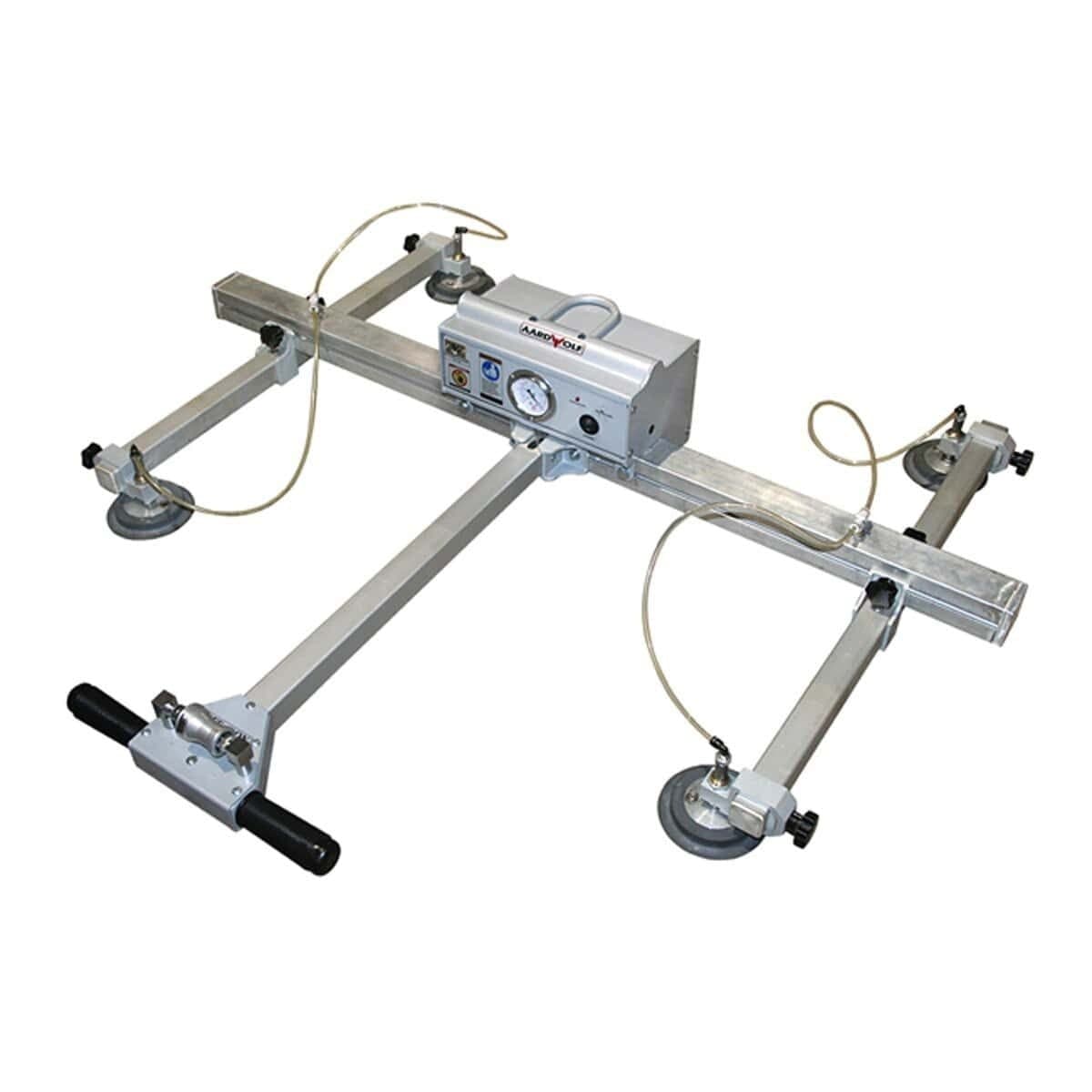

Aardwolf AVLB4 Battery Vacuum Lifter – 353 lb Four-Pad Panel Lifter
The Aardwolf AVLB4 is a lightweight, battery-powered vacuum lifter for smooth, flat materials such as glass, metal sheets, and panels. Four suction pads, a built-in vacuum tank, and a 12V motor with push-button controls make attaching and releasing loads simple. An audio/visual alarm warns of any vacuum loss.
Features
- 353 lb (160 kg) rated lifting capacity
- Four suction pads for balanced horizontal lifting
- 12V battery power — up to 2.5 hours continuous operation
- Built-in vacuum tank holds the load if vacuum drops
- Audio/visual alarm system for vacuum-loss warning
- Lightweight aluminum construction, easy to handle
- Push-button Vacuum / dual Release controls
- Ideal for glass installation, metalworking, and manufacturing
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Part Number | AVLB4 |
| Type | Battery-powered vacuum lifter |
| Lifting Capacity | 353 lb (160 kg) |
| Suction Pads | 4 |
| Power | 12V battery, up to 2.5 hr continuous |
| Orientation | Horizontal lifting |
| Construction | Aluminum |
| Alarm | Audio/visual vacuum-loss |
| Materials | Glass, metal sheets, laser-cut panels |
| Country of Origin | Vietnam |
- Charge the battery fully and confirm the alarm self-test passes.
- Place all four pads flat on clean, sound material with no cracks under the seals.
- Press the Vacuum button and wait for the gauge/indicator to reach the safe range before lifting.
- Hook the lifter to a rated hoist and lift the panel horizontally, slowly and without shock loads.
- Set the load down fully, then use the two Release buttons to vent the pads.
Always wear appropriate PPE. Follow local safety regulations when using power tools or material-handling equipment.
